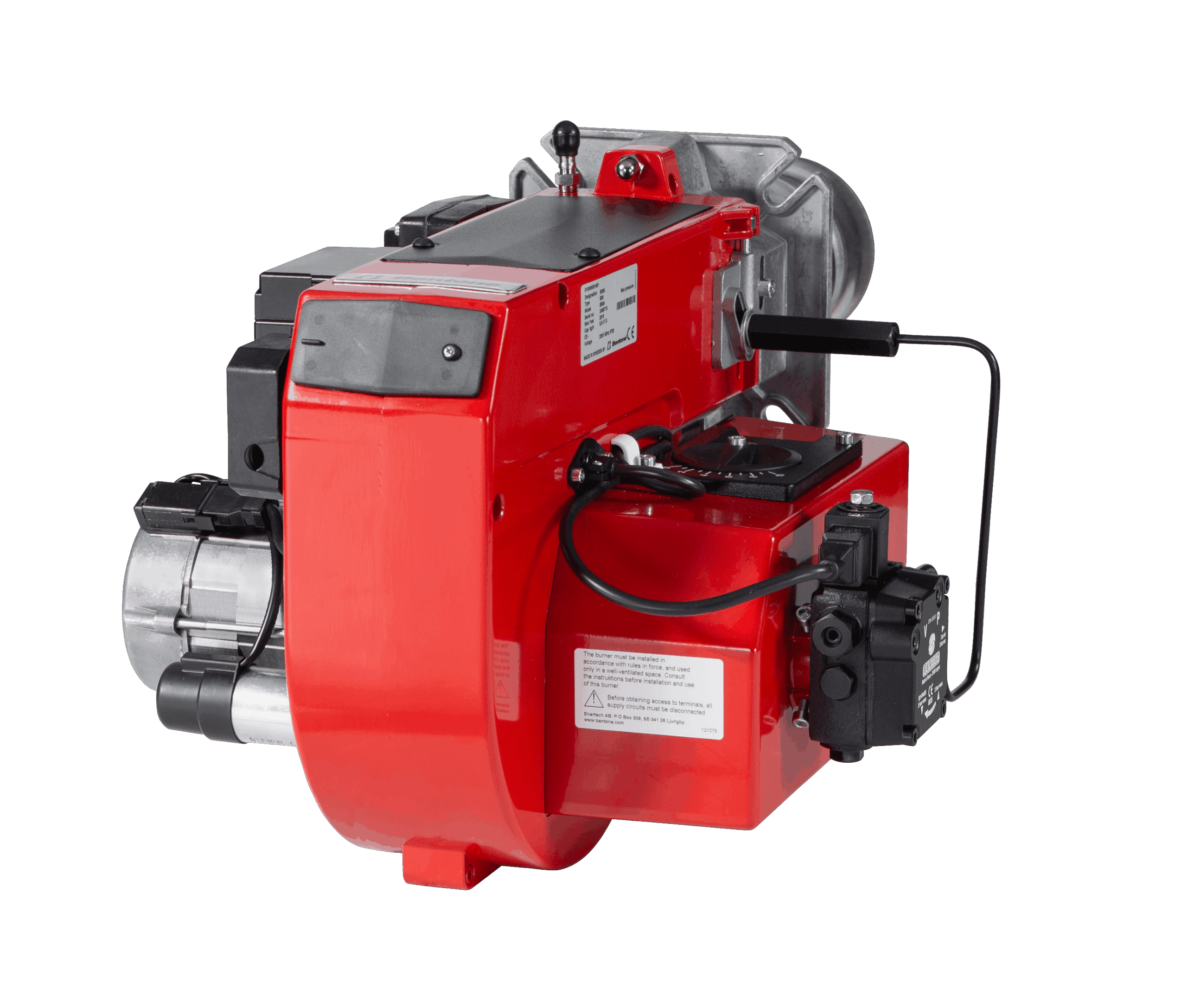

Bentone B30 Oil Burner

Technical Specifications

• Model: Bentone B30
• Burner Type: Light Oil Burner
• Operation: 1-Stage or 2-Stage
• Fuel: Light Oil / Diesel (EO1), B10 Biofuel Blend
• Firing Capacity: 4.5–17.0 kg/h
• Heat Output: 53–202 kW (Typical working range: 55–200 kW)
• Power Supply: 230V AC, 1 Phase, 50 Hz
• Motor Power: 180 W
• Motor Current: 1.3 A
• Total Burner Current: Approx. 2.5–2.6 A
• Pump Type: Suntec / Danfoss (depending on model)
• Control Box: Siemens Burner Control
• Combustion Control: On/Off or 2-Stage
• Air Adjustment: Manual or Optional Hydraulic Air Adjustment
• NozzleSingle Nozzle
• Pump Pressure: 8–25 bar (Recommended: 10 bar)
• Standards: EN 267 Approved
• Applications: Steam Boilers, Hot Water Boilers, Industrial Furnaces, Process Heating, Hot Air Generators
• Key Features: High efficiency, low fuel consumption, quiet operation, easy maintenance, reliable performance, low emissions
