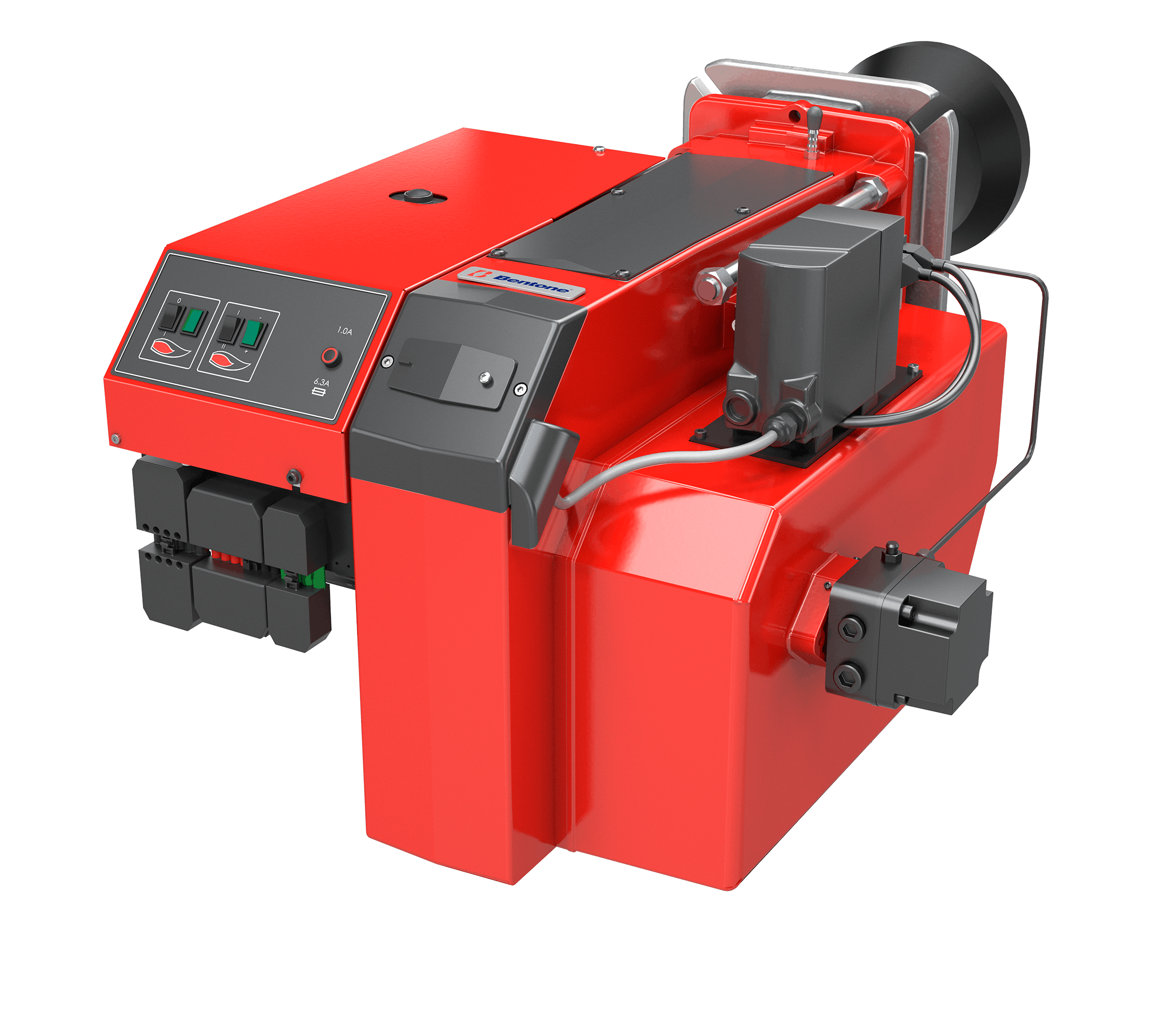

Bentone B55 Oil Burner

Technical Specifications

• Model: Bentone B55 Oil Burner
• Burner Type: Light Oil Burner
• Operation: 2-Stage (Modulating version available on selected models)
• Fuel: Light Oil / Diesel (Fuel Oil EL), HVO/XTL, Bio 10 (model dependent)
• Firing Capacity: 11.0–63.0 kg/h
• Heat Output: 130–750 kW
• Power Supply: 400V AC, 3 Phase, 50 Hz
• Motor Power: 750 W
• Motor Current: Approx. 1.8 A
• Total Burner Current: Approx. 3.5 A
• Pump Type: Danfoss or Suntec Fuel Pump
• Control Box: Siemens Burner Control (LMO/LOA Series, model dependent)
• Combustion Control: Automatic 2-Stage or Modulating Control
• Air Adjustment: Manual Air Adjustment with Optional Servo/Hydraulic Air Damper Control
• Pump Pressure: 10–25 bar (Adjustable depending on pump configuration)
• Standards: EN 267, CE Approved, ErP Compliant
• Applications: Steam Boilers, Hot Water Boilers, Thermal Oil Heaters, Hot Air Generators, Industrial Furnaces, Process Heating Systems, Commercial Heating Applications
• Key Features: High combustion efficiency, low fuel consumption, low NOx emissions, stable flame performance, quiet operation, robust industrial construction, easy maintenance, reliable ignition, suitable for continuous-duty applications, compatible with HVO/XTL and Bio 10 fuels (model dependent).
