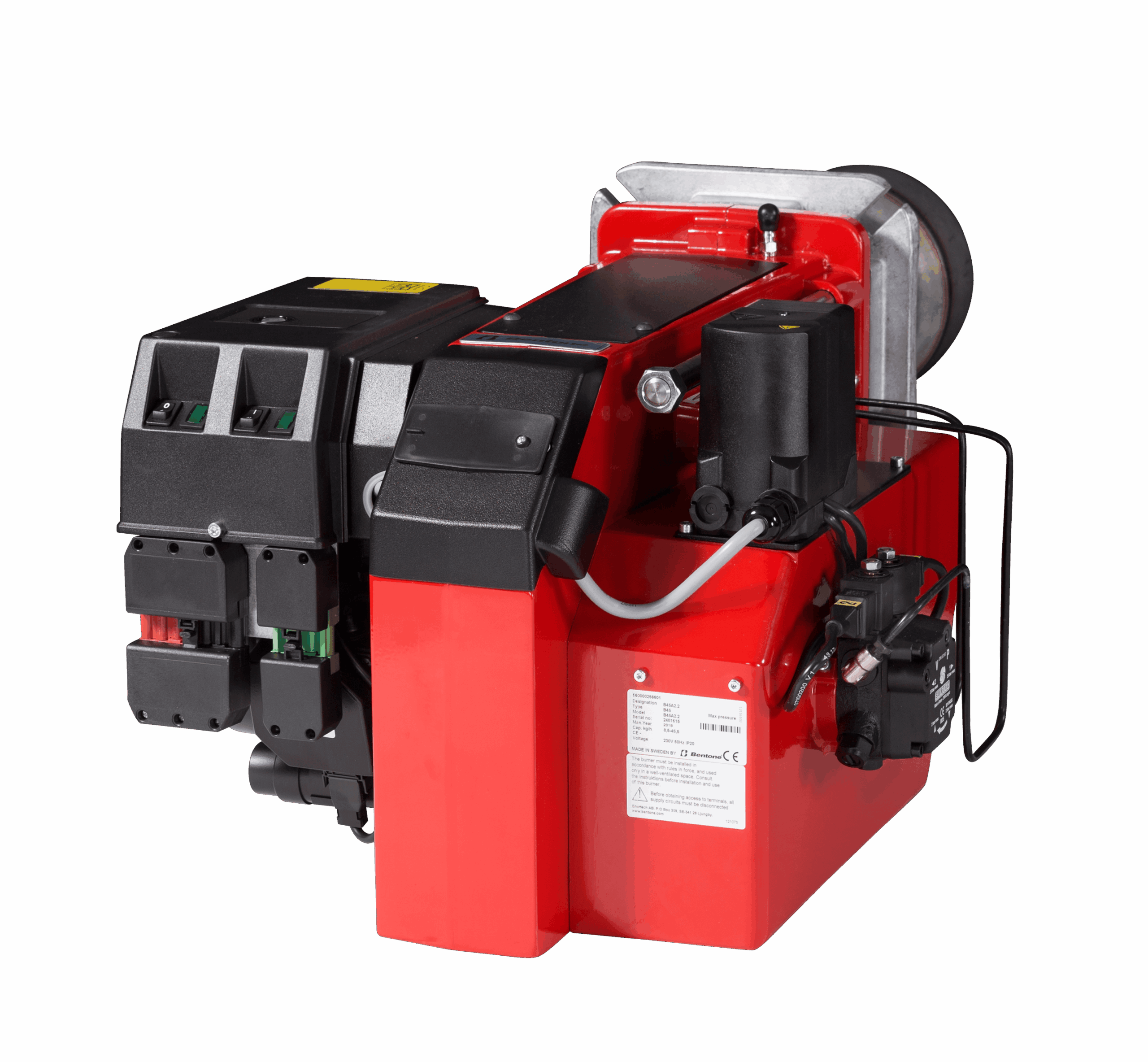

Bentone B45 Oil Burner

Technical Specifications

• Model: Bentone B45 Oil Burner
• Burner Type: Light Oil Burner
• Operation: 2-Stage (3-Stage versions available on selected models)
• Fuel: Light Oil / Diesel (Fuel Oil EL), HVO/XTL, Bio 10 (model dependent)
• Firing Capacity: 8.5–45.5 kg/h
• Heat Output: 101–540 kW
• Power Supply: 230V AC, 1 Phase, 50 Hz
• Motor Power: 450 W
• Motor Current: Approx. 2.0 A
• Total Burner Current: Approx. 4.6 A
• Pump Type: Danfoss or Suntec Fuel Pump
• Control Box: Siemens Burner Control
• Combustion Control: Automatic 2-Stage Combustion Control
• Air Adjustment: Manual Air Adjustment with Optional Hydraulic Air Adjustment
• Pump Pressure: 10 bar (Adjustable 8–25 bar depending on pump model)
• Standards: EN 267, CE Approved, ErP Class 3 Compliant
• Applications: Steam Boilers, Hot Water Boilers, Hot Air Generators, Industrial Furnaces, Process Heating Systems, High-Resistance & Condensing Boilers
• Key Features: High combustion efficiency, low fuel consumption, low emissions, quiet operation, soft pulsation-free start, reliable performance, easy maintenance, wide modulation range, plug-in electrical connection, optional hydraulic air adjustment, compatible with HVO/Biofuel models.
