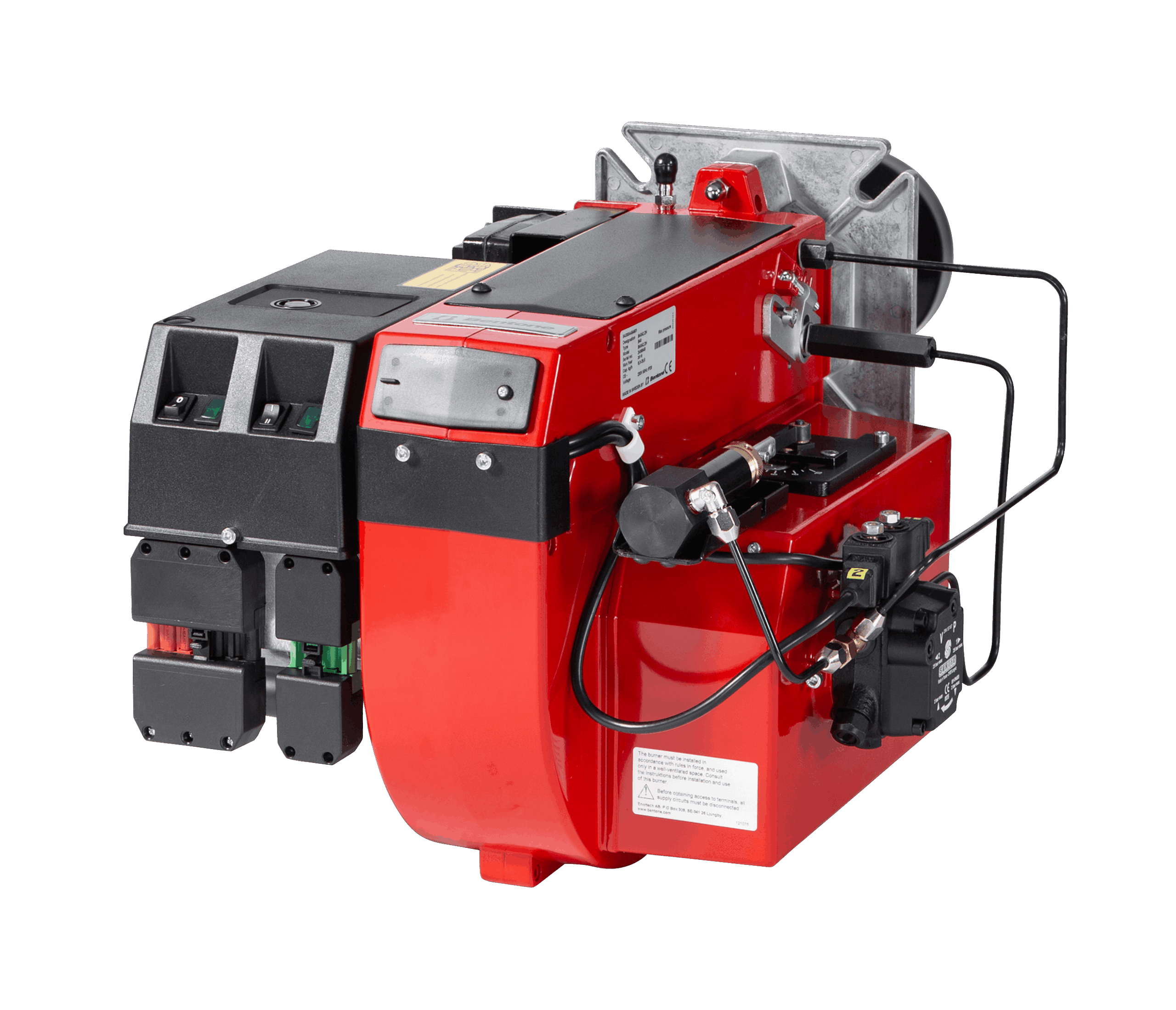

Bentone B40 Oil Burner

Technical Specifications

• Model: Bentone B40 Oil Burner
• Burner Type: Light Oil Burner
• Operation: 1-Stage or 2-Stage
• Fuel: Light Oil / Diesel (Fuel Oil EL), B10 Biofuel Blend (RME/FAME compatible models available)
• Firing Capacity: 8.0–29.5 kg/h
• Heat Output: 95–350 kW
• Power Supply: 230V AC, 1 Phase, 50 Hz
• Motor Power: 250 W
• Motor Current: 1.7 A
• Total Burner Current: Approx. 3.0–3.1 A
• Pump Type: Suntec or Danfoss Fuel Pump (depending on model)
• Control Box: Siemens Burner Control (LMO/LOA Series depending on version)
• Combustion Control: On/Off (1-Stage) or 2-Stage Automatic Control
• Air Adjustment: Manual, Hydraulic or Servo Motor Air Adjustment (model dependent)
• Pump Pressure: 10–25 bar (Factory setting varies by nozzle/application)
• Standards: EN 267, CE Approved, ErP Class 4 Compliant
• Applications: Steam Boilers, Hot Water Boilers, Hot Air Generators, Industrial Furnaces, Process Heating, Commercial Heating Systems
• Key Features: Energy-efficient operation, low fuel consumption, low NOx emissions, quiet operation, easy maintenance, stable flame, suitable for high-resistance boilers, RME/FAME compatible models, robust industrial design, reliable performance.
